CFC-1000 Auto Self Cleaning Centrifuge.

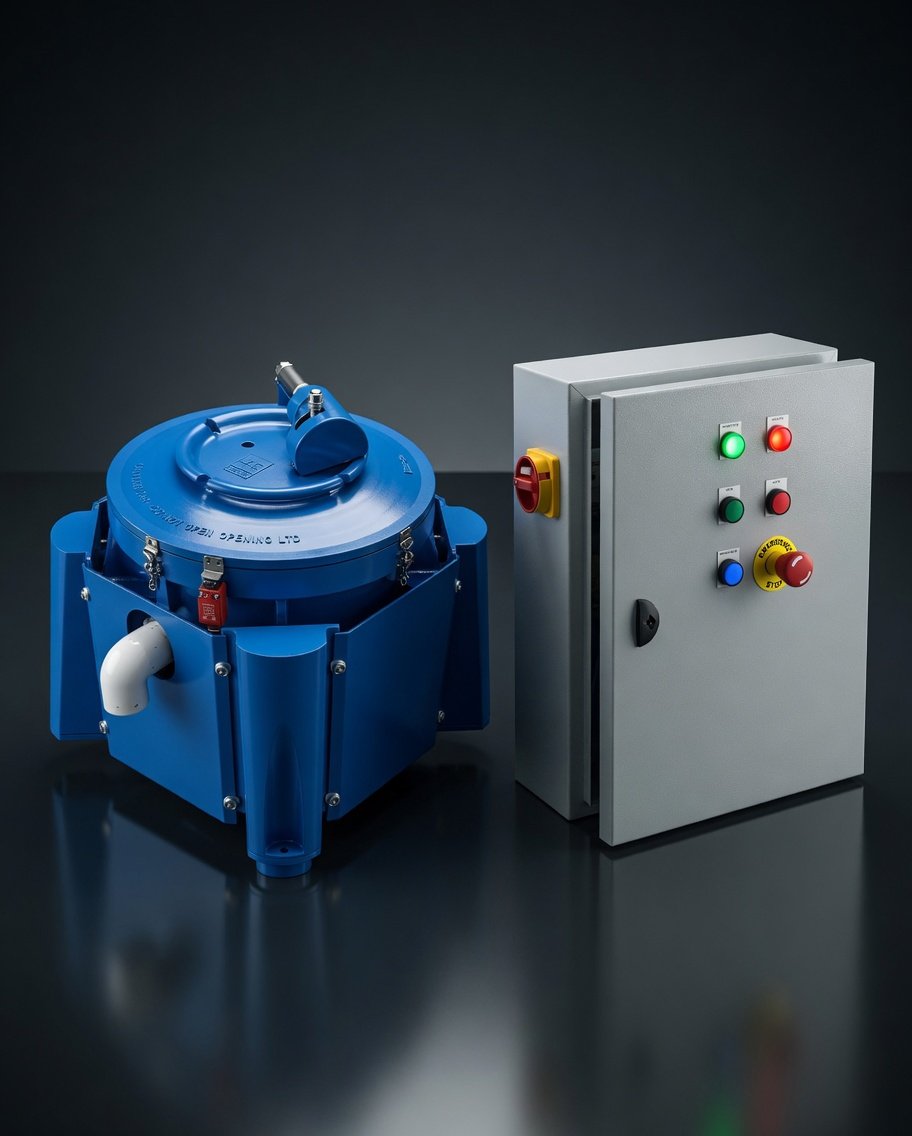

Magnum CFC 1000 Continuous Flow Centrifuge
Cleaning rate is 216 gallons per hour
- Motor is 3 hp 220 volt single phase
- Rated for continuous duty.
- Designed to run 24/7 with out anyone in attendance.
- Controller has safety interface so the cabinet can not be opened with power on.
- All electronics and timers a HD Allen Bradley or equivalent.
- Timers are very simple to operate. Set it and forget it.
Shipping weight: 350 pounds
We offer Equipment Financing and Lease options.
All prices are for US domestic sales only. Export sales are subject to all shipping, duty and VAT fees in the destination country
This unit is fully programmable and self cleaning. Liquid is put through the top via a NPT hole and out via a 2″ NPT port. The bowl spins at 4000 RPM and generates 3000 “G’s”
Flow rates are an indication only and is subjective to the condition of the solution, such as specific gravity, particle size, viscosity, percentage contaminant.
| Substance | Flow Rate GPH |
|---|---|
| Waste Vegetable Oil: (dependent on the oil being cleaned) | 80-400 |
| Engine Oil: | 80 |
| Biodiesel: | 475 |
| Rape Seed and Canola Oil: | 50 |
| Grape Juice/Wine: | 1000 |
| Gold and Silver Recovery: | 160 |
| Glass Cutting Coolant: | 150 |
| Grinding Coolant Waste Water: | 1000 |
| Crude Oil: | 475 |
| Vodka Distilling: | 630 |
