Water in Fuel Sensor Part #06-5 and #06-6SP

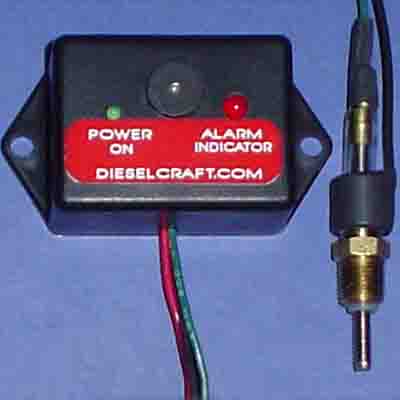

06-5 Water Sensor includes the module with audible alarm, alarm light and power on light.
Download the data sheet

06-6SP Water Sensor includes same options as 06-5 plus one additional 10 amp output to operate a PLC, additional alarm or solenoid.
Download the data sheet

The sending unit is dual voltage, 12 or 24 volt DC. The probe is 1/8 “NPT brass threads and stainless steel probe. The probe is also self grounding to insure accurate readings.
Self grounding eliminates the need to scrape paint off an area to achieve a “perfect” metal to metal ground.

The probe will detect the difference between fuel and water. If water is in the fuel the indicator light will be on. The module contains a panel that instructs you to open the valve and remove the water. When the water is removed the light will go off.

Based on the resistance, the maximum current that the probe can drive through the fluid, assuming the fluid is conductive is less than 0.00004 amps or 0.04 milli-amps. The maximum voltage on the probe is less than 10 volts. This combination is incapable of producing a spark so the system is quite safe and reliable.
